RCM4200 RabbitCore

Product Info

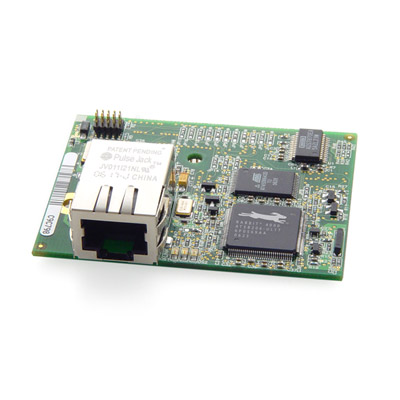

RCM4200 RabbitCore
COM_VIRTUEMART_CATEGORY_BACK_TO

{tab Descrição}

Os microprocessadores RabbitCore RCM4200 são poderosos dispositivos de controle embarcado que oferecem inteligência, 10/100Base-T Ethernet, entrada analógica opcional, e ampla memória para sofisticadas aplicações de “data logging” e serial/ethernet.

Os módulos RabbitCore RCM4200 disponibilizam conexão 10/100 Ethernet, combinada com 4 Mbytes ou 8 Mbytes de memória serial flash para intensa comunicação e aplicações de “data logging”. Os canais analógicos opcionais on-board 12-bit diversificam suas possibilidades de conectividade.

No cerne do RabbitCore RCM4200 está o microprocessador Rabbit 4000 que fornece um clock de até 58,98 MHz. Outras funcionalidades são DMA hardware, I/O auxiliares, quadrature decoder, captura de entradas, linhas de GPIOs compartilhadas com até cinco portas seriais, e quatro níveis de pinos de funções que incluem fase PWM variável. O Rabbit 4000 ostenta o 500+ novo código de instruções operacionais que melhora a eficiência do processamento, vindo do seu predecessor o Rabbit 3000.

Os módulos RabbitCore RCM4200 são facilmente intercambiáveis com outros módulos baseados no produto RCM4xxx devido a sua compatibilidade eletrica e funcional. Com um pequeno footprint (área de soquete) 47mm x 61mm (1.84”x2.42”), o RCM4200 é compacto e pode facilmente ser montado diretamente sobre a placa mãe construída pelo usuário, permitindo integrar dispositivos digitais compatíveis com CMOS, via placa mãe do usuário.

{tab Modelos}

FeaturesRCM4200RCM4210
Part Number
20-101-1131
 20-101-1132
Development Kit 101-1156

{tab Características}

FeaturesRCM4200RCM4210
Microprocessor Rabbit 4000 @ 58.98 MHz Rabbit 4000 @ 29.49 MHz
EMI Reduction Spectrum spreader for reduced EMI (radiated emissions)
Ethernet Port 10/100Base-T, RJ-45, 3 LEDs
Data SRAM 512K (8-bit)
Program Execution Fast SRAM 512K (8-bit) -
Flash Memory 512K (8-bit)
Serial Flash Memory 8 Mbytes 4 Mbytes
Backup Battery Connection for user-supplied backup battery (to support RTC and data SRAM)
General Purpose I/O 25 parallel digital I/O lines configurable
with four layers of alternate functions		 35 parallel digital I/O lines configurable
with four layers of alternate functions
Additional Inputs 2 startup mode, reset in, CONVERT 2 startup mode, reset in

Additional Outputs

 Status, reset out, analog VREF Status, reset out
Analog Inputs 8 channels single-ended, or 4 channels differential. Programmable gain 1, 2, 4, 5, 8, 10, 16, and 20 V/V -
A/D Converter Resolution 12 bits (11 bits single-ended)
A/D Conversion Time (including
120 μs raw count and Dynamic C)		 180 μs
Auxiliary I/O Bus 8 data lines, 6 address lines (shared with parallel I/O lines) plus I/O read/write
Serial Ports Configurable as asynchronous (with IrDA), 4 as clocked serial (SPI), and 1 as SDLC/HDLC
Up to 4 serial ports (shared with programming port, A/D converter, and serial flash) Up to 5 serial ports (shared with programming port, and serial flash)
Serial Rate Maximum asynchronous baud rate = CLK/8
Slave Interface Slave port allows the RabbitCore module to be used as an intelligent peripheral device slaved to a master processor
Real Time Clock Yes
Timers Ten 8-bit timers (6 cascadable from the first), one 10-bit timer with 2 match registers, and one 16-bit timer with 4 outputs and 8 set/reset registers
Watchdog/Supervisor Yes
Pulse-Width Modulators 3 channels synchronized PWM with 10-bit counter 3 channels variable-phase or synchronized PWM with 16-bit counter 4 channels synchronized PWM with 10-bit counter 4 channels variable-phase or synchronized PWM with 16-bit counter
Input Capture 2-channel input capture can be used to time input signals from various port pins
Quadrature Decoder 1 channel accepts inputs from external incremental encoder modules 1 channel accepts inputs from external incremental encoder modules
Power (pins unloaded) 3.0–3.6 V DC
240 mA (typ.) @ 3.3 V,
275 mA (max.) at 3.6 V and 85°C		 200 mA (typ.) @ 3.3 V,
225 mA (max.) at 3.6 V and 85°C
Operating Temperature -40°C to +85°C
Humidity 5% to 95%, non-condensing
Connectors One 2 × 25, 1.27 mm pitch IDC signal header
One 2 × 5, 1.27 mm pitch IDC programming header
Board Size 1.84” × 2.42” × 0.84” (47 mm × 61 mm × 21 mm)
Part Number 20-101-1131 20-101-1132
Development Kit 101-1156

{tab Aplicações} {tab Documentação}

Manuals

Data Sheet

Schematics





Software

{/tabs}
